How to Create Backlit Signage with UV Printing

Create stunning, eye-catching signage with UV printing technology

When thinking about cities like Las Vegas, New York, and Tokyo, images of stunning, eye-catching signage often spring to mind. More and more, we see brightly lit displays being used to create unforgettable messages for advertising and simple ambient appeal for restaurants, galleries, and even modern home decor.

An innovative technique that is gaining popularity is the concept of designing day/night prints that incorporate not just one style or message but two from day to evening. The concept involves printing additional layers of artwork which are revealed only when a backlight is activated.

The image displayed during the day is front-lit by natural lighting, while a white barrier in between printed layers separates a more complex and color-dominant “hidden” image waiting for its evening debut. You can use this hidden layer to display text, change the color or add more visual effects to your design.

Selecting a material

The day/night effect can be attained on a variety of transparent materials including, but not limited to: glass, clear acrylic, polycarbonate, and other clear plastic materials. The key is having a nice clean, flat surface to layer your prints. UV printing technology offers the ability to print more than one layer at a time, resulting in perfect registration, which is a major key to achieving a stunning day/night transition.

Creating artwork for your backlit signage

This can be the tricky part, but here are a few tips that can help. When designing in a program such as Adobe Photoshop or Illustrator, you can place artwork on separate layers, which allows you to register portions of the day and night artwork easily. If you design your artwork for day and night within the same file, you can set the transparency of your layers to ‘Multiply’ to preview how the images will look once the backlight is turned on.

Once your design is finalized, hide unnecessary layers before exporting each of the two separate day and night files for printing. The daytime image should be simple, with areas of plain color that provide a base for your nighttime details to show through.

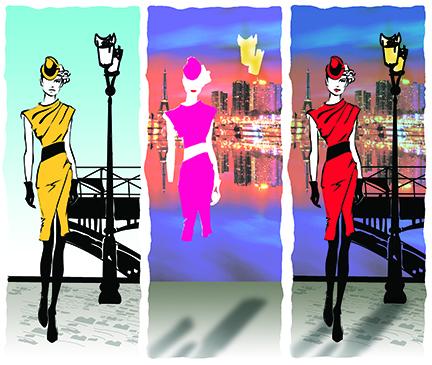

Keep in mind that all creative elements used in the daytime artwork will remain visible when the backlight is applied, so you need to account for this. For example, the solid yellow in the dress of our daytime image combines with the magenta dress in the nighttime image, resulting in a red dress. The black vector outlines on the daytime image remain visible when the sign is backlit, so there is no need to include these elements in the nighttime artwork.

Backlit signage

You can use photographic or vector images to build your artwork or combine elements of each for a creative touch. In our example, a simple vector image with black outlines and areas of solid color were used for the daytime artwork.  The nighttime artwork incorporates a photographic image of a city at night, along with some bursts of color.

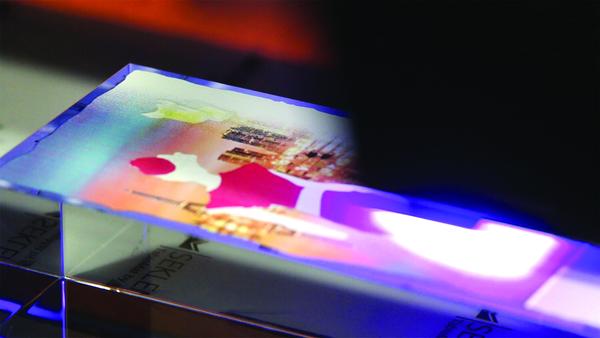

Printing layers onto the substrate

Backlit signage

Now that you created the file and the day and night layers are perfectly aligned, the next step is to sandwich them together on your substrate with a translucent, but still dense, white layer in-between. The key is to provide enough opacity to obscure the nighttime artwork during the day, while still permitting the backlight to shine through at night — this is a perfect balance.

With clear substrates, it’s best to print artwork on the backside to provide added protection from the elements. Since layers are printed on the back, the image needs to be mirrored or flipped — especially if there is any text in the design. This can be done using RIP software or within the design software used to create the images.

Backlit signage

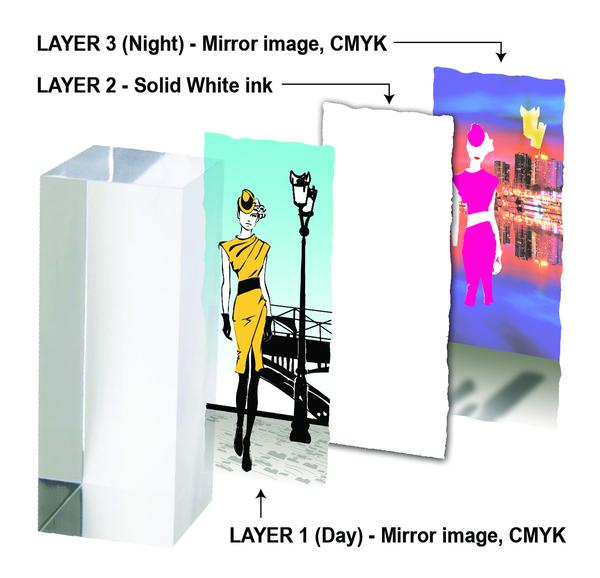

As illustrated in the diagram above, you want to print your mirrored daytime image first in color only, followed by a solid white layer. Lastly, print your mirrored nighttime artwork in color only. Once printed, good lighting and proper location are key to showcasing your display. Safe and energy-efficient LED lighting is recommended, but you can also experiment with other types of lighting to find the best overall luminescence and color balance when your backlight is activated.

Rachel Tindal LogoJET

Rachel Tindal

LogoJET

Rachel Tindal is the art director at LogoJET and has over 20 years of experience in the printing and graphics industry. Originally from Ontario, Canada, she has worked with small print shops and promotional product businesses ranging to large corporate marketing firms. She has specialized in creating artwork for direct-to-substrate printing technology since 2005.
